Quick answer
A STATCOM (Static Synchronous Compensator) is a power electronics device that provides dynamic reactive power compensation to regulate grid voltage. It continuously monitors voltage and instantaneously injects or absorbs reactive power (VARs), reacting in 1-2 milliseconds to keep voltage within limits. With no moving parts, it stabilizes grids facing renewable variability, heavy industrial loads, and weak connections.
The modern electrical grid faces unprecedented challenges: rapid renewable integration, increasing load volatility, and aging infrastructure, all while demand for rock-solid voltage stability has never been higher. Enter the STATCOM (Static Synchronous Compensator), a power electronics marvel that has become indispensable for maintaining grid stability in the 21st century.
If you have heard of STATCOMs but do not fully understand what they do, why they matter, or when you need one, this is your guide.

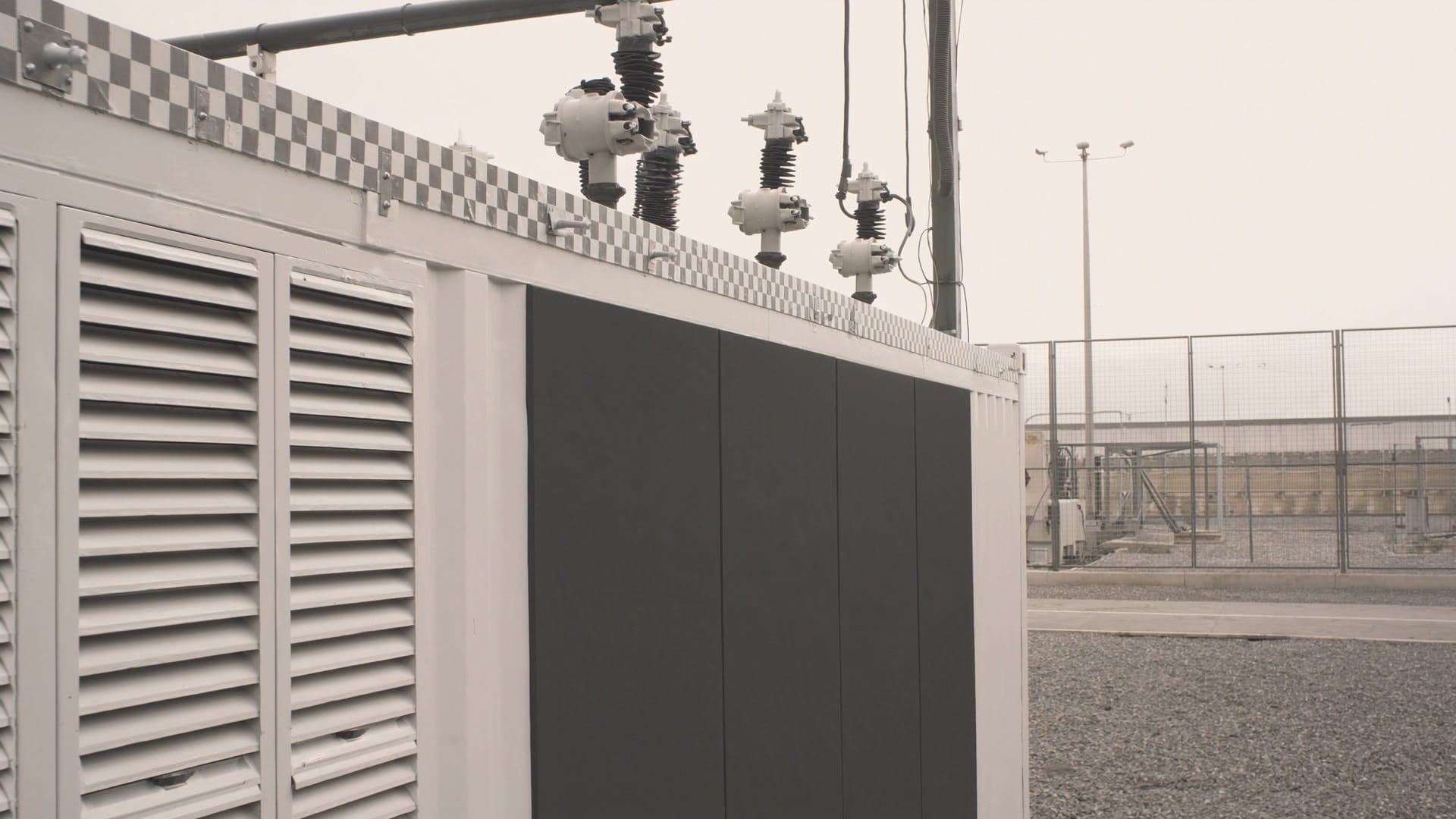

What Is a STATCOM?
A STATCOM is a Flexible AC Transmission System (FACTS) device that provides dynamic reactive power compensation to regulate voltage and improve power system stability. Think of it as a high-speed, electronically controlled voltage regulator for the grid.
The technical definition: a voltage-source converter (VSC) based device that synthesizes reactive current by controlling the phase angle and magnitude of its output voltage relative to the grid voltage.
The practical explanation: a STATCOM continuously monitors grid voltage and instantaneously injects or absorbs reactive power (VARs) to keep voltage within specified limits, reacting in 1-2 milliseconds to disturbances that would otherwise cause voltage collapse, equipment trips, or power quality problems.
How Does a STATCOM Work?
At its core, a STATCOM uses power electronics (IGBTs or similar switching devices) to create a controllable AC voltage source.
Absorbing Reactive Power (Inductive Mode)
When grid voltage is too high, the STATCOM makes its output voltage slightly lower than the grid voltage, causing reactive current to flow from the grid into the STATCOM, effectively behaving like an inductor and pulling voltage down.
Injecting Reactive Power (Capacitive Mode)
When grid voltage is too low, the STATCOM makes its output voltage slightly higher than the grid voltage, causing reactive current to flow from the STATCOM into the grid, effectively behaving like a capacitor and boosting voltage up.
The Magic
This happens electronically at speeds measured in milliseconds, with no moving parts, and with near-linear response across a wide voltage range. These are capabilities that traditional reactive compensation technologies (capacitor banks, reactors, synchronous condensers) simply cannot match.
Why Does Grid Voltage Matter?
Before diving deeper into STATCOMs, it is worth understanding why voltage stability is so critical.
Equipment performance: most electrical equipment is designed for operation within plus or minus 5-10% of nominal voltage. Beyond those limits:
- Motors overheat and lose torque (low voltage) or face insulation stress (high voltage)
- Electronics malfunction or fail
- Lighting flickers or produces incorrect color temperature
- Transformers saturate (high voltage) or fail to deliver rated power (low voltage)
Power quality: voltage fluctuations cause flicker, a visible fluctuation in light output that is annoying at best and can trigger seizures in susceptible individuals at worst. NEMA and IEEE standards strictly limit allowable flicker.
Grid stability: in severe cases, voltage collapse can trigger cascading failures, where one disturbance causes voltage to drop, which causes more disturbances, which causes further voltage drops, ultimately leading to widespread blackouts. The 2003 Northeast Blackout was partly caused by voltage instability.
Renewable integration: solar and wind generation can change rapidly (cloud passage, wind gusts), causing voltage swings. Without dynamic voltage support, these variations can exceed interconnection limits or cause stability problems.
STATCOM vs. Traditional Reactive Compensation
The speed and voltage-independence of STATCOMs make them uniquely suited for applications where voltage support must work precisely when the grid is most stressed. The table below compares the three main reactive compensation technologies.
| Attribute | Capacitor Banks | Synchronous Condensers | STATCOM |
|---|---|---|---|
| Response speed | Slow switching (100+ ms) | Fast (10-20 ms) | Extremely fast (1-2 ms) |
| Output vs. voltage | Output decreases with voltage (less when needed most) | Linear output, independent of voltage | Continuously variable; full output down to 0.2 pu |
| Output control | Fixed, all-or-nothing switching | Linear | Continuously variable |
| Harmonics / transients | Can create harmonics and transients when switching | Low | Minimal (modern multilevel designs) |
| Footprint / construction | Compact | Large footprint, rotating machinery, high losses | Compact, solid-state, no rotating parts |
| Maintenance | Low | Significant (rotating machinery) | Low (no moving parts) |
| Cost | Low cost per MVAR | High cost | Moderate to high per MVAR, but declining |
Where Are STATCOMs Deployed?
1. Renewable Energy Interconnections
Solar and wind farms must meet strict grid code requirements for voltage support and fault ride-through. STATCOMs enable:
- Continuous voltage regulation to plus or minus 0.5% or better
- Fault ride-through capability during grid disturbances
- Mitigation of voltage flicker from cloud passage or wind gusts
- Compliance with FERC Order 2023 and NERC interconnection standards
2. Weak Grid Connections
Industrial facilities or renewable plants connected to weak transmission systems (high impedance, low short-circuit ratio) experience larger voltage swings for a given change in real or reactive power. STATCOMs provide the dynamic support needed to maintain stable operation.
3. Electric Arc Furnaces and Large Motor Drives
Rapidly changing loads like arc furnaces, rolling mills, or mining excavators can cause severe voltage flicker. STATCOMs counteract these disturbances in real-time, maintaining power quality for neighboring customers.
4. Transmission System Voltage Support
Utilities deploy STATCOMs at transmission substations to:
- Increase power transfer capacity on constrained corridors
- Provide voltage support during contingency conditions (line or generator outages)
- Defer expensive transmission upgrades by better utilizing existing assets
- Enable integration of additional generation without voltage stability concerns
5. Data Centers and Critical Facilities
High-reliability facilities in areas with weak utility supply use STATCOMs to maintain rock-solid voltage despite external disturbances, reducing the risk of costly equipment trips or shutdowns.
Performance Specifications That Matter
When evaluating or specifying a STATCOM, key performance metrics include:
Rated capacity: typically specified in MVAR (reactive power). Common sizes range from plus or minus 5 MVAR (distribution) to plus or minus 300 MVAR (transmission).
Response time: 1-2 milliseconds for modern voltage-source converter designs. Faster is better for flicker mitigation and transient stability.
Voltage operating range: many STATCOMs provide full output from 1.0 pu down to 0.15-0.2 pu. This low-voltage capability is critical during faults and severe sags.
Harmonic performance: modern multilevel converter designs (often using 48+ voltage levels) produce total harmonic distortion (THD) below 1-2%, often better than the background grid distortion.
Overload capability: many STATCOMs can briefly provide 1.5-2.0x rated output for several seconds, useful for supporting fault ride-through or handling extreme transients.
Efficiency: operating losses typically 1-2.5% of rated capacity. Since STATCOMs often operate at partial load, average losses are usually lower than peak losses.
Case Study: 100 MW Solar Farm STATCOM Integration
A 100 MW solar farm interconnecting to a 138 kV transmission system faced several challenges:
- Weak grid: short-circuit ratio (SCR) of 9 at the point of interconnection
- Strict voltage limits: must maintain plus or minus 2% voltage at POI across all operating conditions
- Flicker limits: IEC 61000-4-15 Pst below 1.0 to avoid impact to neighboring customers
- FERC Order 2023 compliance: fault ride-through and specified reactive current injection
Our solution: a plus or minus 25 MVAR STATCOM integrated into the facility's MV collector system.
Performance achieved:
- Voltage regulation: maintained within plus or minus 1.2% across all conditions, including cloud transient ramps up to 70 MW/minute
- Flicker: Pst = 0.3 (well below the 1.0 limit) during the most challenging ramp scenarios
- Fault ride-through: maintained full operation during a three-phase fault with voltage sag to 0.15 pu for 9 cycles
- Revenue impact: enabled full-time operation without curtailment, avoiding $2.1M/year in lost generation
- Payback: 2.3 years based on avoided curtailment alone (not counting avoided interconnection upgrade)
Active Front-End Inverters: STATCOM Functionality Built-In
An emerging trend is incorporating STATCOM-like functionality directly into solar inverters or BESS power conversion systems (PCS) through active front-end or grid-forming inverter designs.
Advantages:
- No separate STATCOM equipment cost
- Leverages inverter capacity that is often underutilized (inverters sized for peak DC but operating at partial load most of the time)
- Simpler single-vendor integration
Limitations:
- Reactive power capability only available when the DC source (solar or battery) is active
- Inverter capacity shared between real and reactive power (providing VARs reduces available real power)
- Grid-forming capability often requires firmware upgrades and is less mature than dedicated STATCOMs
For many applications, particularly solar-plus-storage projects, leveraging inverter reactive capability reduces or eliminates the need for separate STATCOM equipment, but it requires careful engineering to ensure requirements are met across all operating modes.
The Engineering Decision: Do You Need a STATCOM?
Not every facility needs a STATCOM. The decision depends on:
- Grid strength: SCR below 15 warrants detailed voltage stability analysis
- Voltage regulation requirements: plus or minus 2% or tighter typically needs dynamic support
- Load or generation variability: fast ramps or frequent changes favor a STATCOM
- Flicker limits: IEC or IEEE flicker standards often require dynamic compensation
- Interconnection requirements: grid codes increasingly mandate capabilities only STATCOMs provide
- Cost-benefit: compare STATCOM cost against alternatives (transmission upgrades, curtailment, penalties)
The analysis requires detailed power system studies, including load flow, short-circuit, transient stability, and often electromagnetic transient (EMT) simulations to validate performance before committing to equipment.
The Future: Grid-Forming Inverters and Virtual Synchronous Machines
STATCOM technology continues to evolve. The next generation, grid-forming inverters operating as Virtual Synchronous Machines (VSMs), will not only provide voltage support but also emulate the inertia and frequency response traditionally provided by rotating generators.
As grids transition to higher penetrations of inverter-based resources, these advanced capabilities will be essential for maintaining stability. STATCOMs are evolving from "nice to have" to essential infrastructure for the renewable energy transition.
Planning a renewable project or dealing with voltage stability challenges? Our team provides comprehensive power system studies and FACTS device specification to ensure your project meets grid requirements, maximizes performance, and avoids costly surprises during commissioning. Contact us to discuss your specific application.
Frequently asked questions
What is a STATCOM and what does it do?
A STATCOM is a Flexible AC Transmission System (FACTS) device that provides dynamic reactive power compensation to regulate voltage and improve power system stability. It acts as a high-speed, electronically controlled voltage regulator for the grid, injecting or absorbing reactive power to keep voltage within specified limits.
How does a STATCOM work?
A STATCOM uses power electronics (IGBTs or similar switching devices) to create a controllable AC voltage source. When grid voltage is too high, it lowers its output voltage slightly to absorb reactive power and pull voltage down (inductive mode). When voltage is too low, it raises its output voltage to inject reactive power and boost voltage up (capacitive mode). This happens electronically in milliseconds, with no moving parts.
How is a STATCOM different from capacitor banks or synchronous condensers?
Capacitor banks switch in fixed steps over 100+ milliseconds and provide less output exactly when voltage drops. Synchronous condensers respond in 10-20 milliseconds but use rotating machinery that needs maintenance and a large footprint. A STATCOM offers continuously variable output, a 1-2 millisecond response, full output down to 0.2 pu voltage, and a compact solid-state design with no rotating parts.
Where are STATCOMs typically deployed?
STATCOMs are deployed at renewable energy interconnections (solar and wind farms), weak grid connections with low short-circuit ratios, facilities with electric arc furnaces or large motor drives, transmission substations for voltage support, and data centers or critical facilities needing rock-solid voltage despite a weak utility supply.
Do I need a STATCOM for my project?
Not every facility needs one. The decision depends on grid strength (a short-circuit ratio below 15 warrants analysis), voltage regulation requirements (plus or minus 2% or tighter usually needs dynamic support), load or generation variability, flicker limits, interconnection requirements, and a cost-benefit comparison against alternatives. Detailed power system studies confirm whether a STATCOM is justified.
