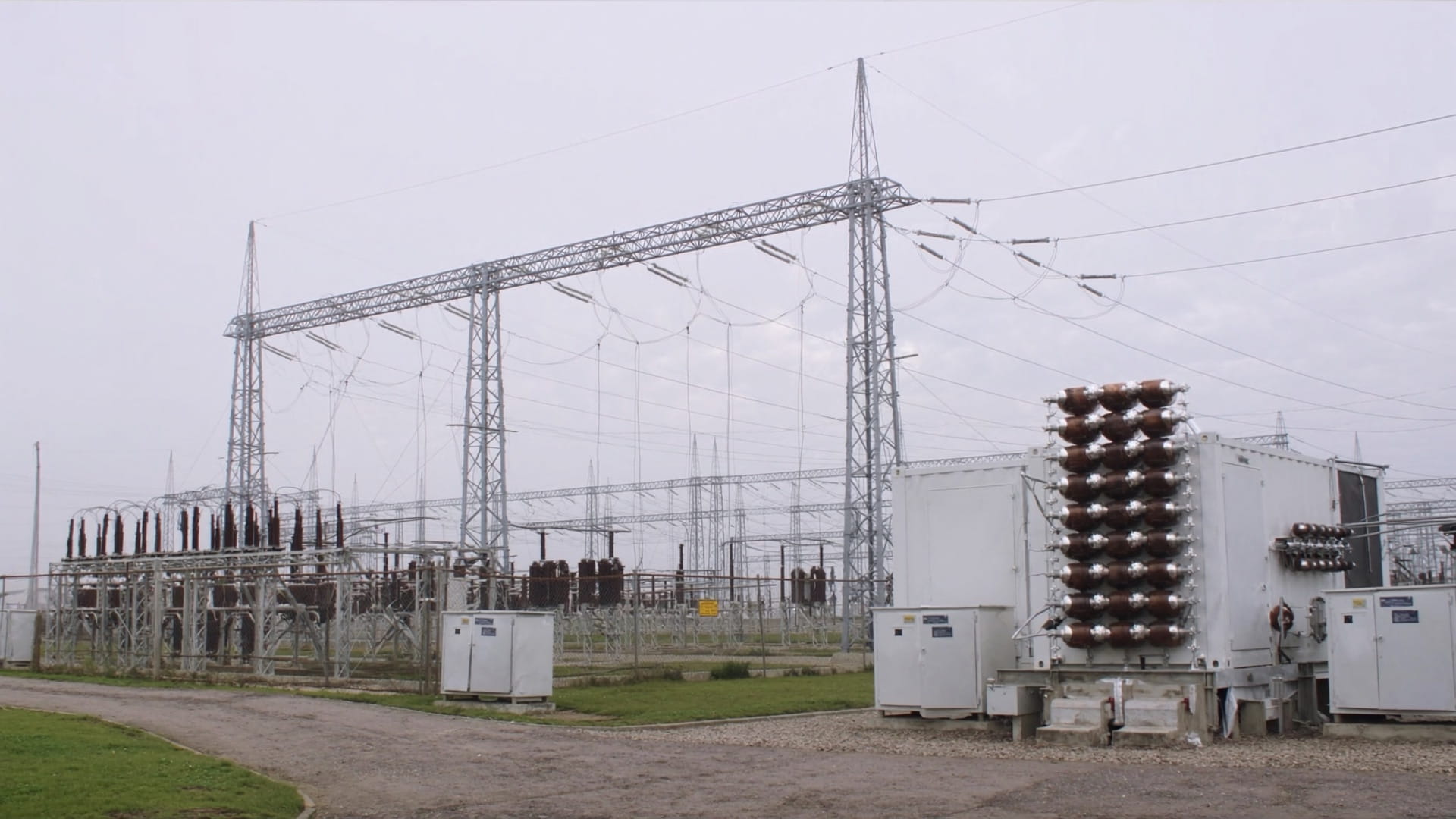

STATCOM vs. SVC: How We Choose the Right Dynamic Reactive Support

When voltage sags, equipment trips and production halts. For facilities with weak grid connections, large motor starts, or significant renewable energy generation, maintaining voltage stability is a constant engineering challenge. Two technologies dominate the dynamic reactive power compensation space: Static VAR Compensators (SVC) and Static Synchronous Compensators (STATCOM). The short answer to which one you need: an SVC is the economical pick for steady-state regulation where space and budget matter most, and a STATCOM is the necessary pick when you need fast response, deep-sag support, a compact footprint, or harmonic filtering. The rest comes down to your specific system characteristics.

SVC vs. STATCOM at a Glance

Both technologies absorb or inject reactive power (VARs) to stabilize voltage, but their performance differs where it counts. This table is the fastest way to see where each one wins.

Understanding the Fundamentals

Both SVCs and STATCOMs provide dynamic reactive power compensation, absorbing or injecting reactive power to stabilize voltage. However, their underlying technologies and performance characteristics differ significantly.

Static VAR Compensator (SVC)

Based on thyristor-controlled or thyristor-switched reactors and capacitors, SVCs have been the workhorse of dynamic reactive compensation since the 1970s. They are essentially fast, electronically-controlled variable reactances.

Static Synchronous Compensator (STATCOM)

A voltage-source converter (VSC) based technology that synthesizes reactive current using power electronics, similar to how a synchronous condenser operates but without rotating machinery.

Performance Comparison: Where It Matters

Response Time

An SVC responds in 20-40 milliseconds, limited by thyristor firing and inductive time constants. A STATCOM responds in 1-2 milliseconds thanks to near-instantaneous power electronic switching.

Real-world impact: For fast-changing loads like electric arc furnaces (EAFs) or rapidly ramping solar PV, a STATCOM's faster response provides substantially better voltage regulation and flicker mitigation.

Voltage-Dependent Behavior

An SVC's reactive power output decreases with the square of voltage, so when you need it most (during low voltage) it provides less support. A STATCOM delivers full reactive current capability down to 0.15-0.2 pu voltage.

Real-world impact: During severe voltage sags or grid faults, a STATCOM maintains support while an SVC's contribution drops dramatically. For weak grids or critical processes, this difference can mean the difference between riding through or tripping offline.

Physical Footprint

An SVC requires large inductors and capacitor banks, typically a 30-40% larger footprint. A STATCOM uses compact power electronic modules with smaller passive components.

Real-world impact: Space-constrained sites (urban substations, offshore platforms, existing facilities) often favor STATCOM despite higher costs.

Harmonic Performance

An SVC's thyristor switching generates characteristic harmonics (5th, 7th, 11th, 13th), requiring filtering. Modern multilevel STATCOM converters produce minimal harmonics and can actually filter existing harmonics.

Real-world impact: In facilities already struggling with harmonic issues (data centers, VFD-heavy manufacturing), a STATCOM can improve rather than worsen power quality.

Operating Loss

An SVC incurs 1.5-3% of rated power in resistive losses across thyristors and inductors. A STATCOM runs at 1-2.5% with modern IGBTs and improved converter designs.

Real-world impact: Efficiency is comparable, though STATCOM's modular design often enables better partial-load efficiency.

Cost

An SVC runs $20-40/kVAR for utility-scale systems. A STATCOM runs $40-80/kVAR, though costs have fallen 30% in the past five years.

Real-world impact: For many applications, SVC's lower cost still makes it the economically rational choice, provided its performance limitations do not compromise the application.

When to Specify an SVC

SVCs remain the right choice for applications where:

1. Steady-state voltage regulation is the primary concern (wind farms, long transmission lines)
2. Budget constraints are paramount and performance requirements are moderate
3. Load changes are gradual (minutes to hours rather than cycles)
4. Utility-scale applications where space is not constrained
5. Proven, mature technology is preferred for risk-averse stakeholders

Example application: A 100 MW wind farm interconnection where voltage must be regulated to plus or minus 0.5% but load changes occur over minutes as wind speed varies. A 50 MVAR SVC can provide the required performance at significantly lower cost than a STATCOM.

When a STATCOM is Essential

STATCOMs become the necessary choice when:

1. Fast response is critical (EAFs, cranes, rapid PV ramps, motor starts)
2. Weak grid with high impedance or low short-circuit ratio
3. Severe voltage sags require support during the deepest sags
4. Flicker mitigation for sensitive loads or NEMA MG-1 compliance
5. Space is limited and a compact footprint is essential
6. Harmonic filtering is needed in addition to reactive support
7. Black start capability or microgrid operation is required

Example application: A 20 MW data center with a utility connection SCR of 8 (weak grid), sensitive IT loads, and existing harmonic issues. A plus or minus 10 MVAR STATCOM provides:

• Voltage support maintaining plus or minus 2% regulation during motor starts
• Flicker reduction to maintain ITIC curve compliance
• Active harmonic filtering reducing voltage THD from 6.2% to 2.8%
• Fault ride-through capability preventing costly IT load trips

The Hybrid Approach

For some applications, a hybrid SVC/STATCOM configuration offers the best economics:

• The SVC provides bulk reactive power for steady-state regulation (lower cost per kVAR)
• A smaller STATCOM handles fast transients and provides harmonic filtering
• The combined system cost can be 20-30% lower than a pure STATCOM approach

We designed this configuration for a 150 MW solar-plus-storage facility where:

• A 40 MVAR SVC handles bulk reactive requirements for the interconnection agreement
• A 10 MVAR STATCOM manages PV ramp rates and provides fault ride-through
• The combined solution saved $1.8M versus a pure STATCOM approach while meeting all performance requirements

The Engineering Analysis You Need

Selecting between SVC and STATCOM is not a brochure comparison. It requires detailed system analysis:

1. System impedance and SCR calculation at the point of interconnection
2. Load flow and voltage stability studies under various operating scenarios
3. Transient analysis to verify ride-through performance
4. Flicker assessment using IEC 61000-4-15 methodology if applicable
5. Harmonic studies to verify IEEE 519 compliance
6. Economic analysis including capital cost, operating losses, and avoided downtime
7. Protection coordination with existing relays and schemes

Don't Overspecify, or Underspecify

We have seen both mistakes:

• Utilities specifying STATCOM for applications where an SVC would suffice, wasting $2-4M per project
• Industrial facilities specifying SVC for arc furnace loads, resulting in continued flicker problems and production interruptions

The right choice depends on your specific system characteristics, load profile, and performance requirements. That is where engineering judgment informed by detailed studies makes all the difference.
