Quick answer
An uninterruptible power supply (UPS) is an electrical device that provides instantaneous emergency power and power conditioning the moment utility power fails or degrades, so connected loads never see the interruption. Choose your topology by criticality: standby (offline) UPS for desktops and small office equipment, line-interactive for small servers and networking gear, and double-conversion (online) UPS for data centers, hospitals, and critical manufacturing where even a half-cycle interruption causes problems.
You don't think about your seatbelt until you need it. And when you need it, you need it instantly, not after a three-second delay while it "powers up."

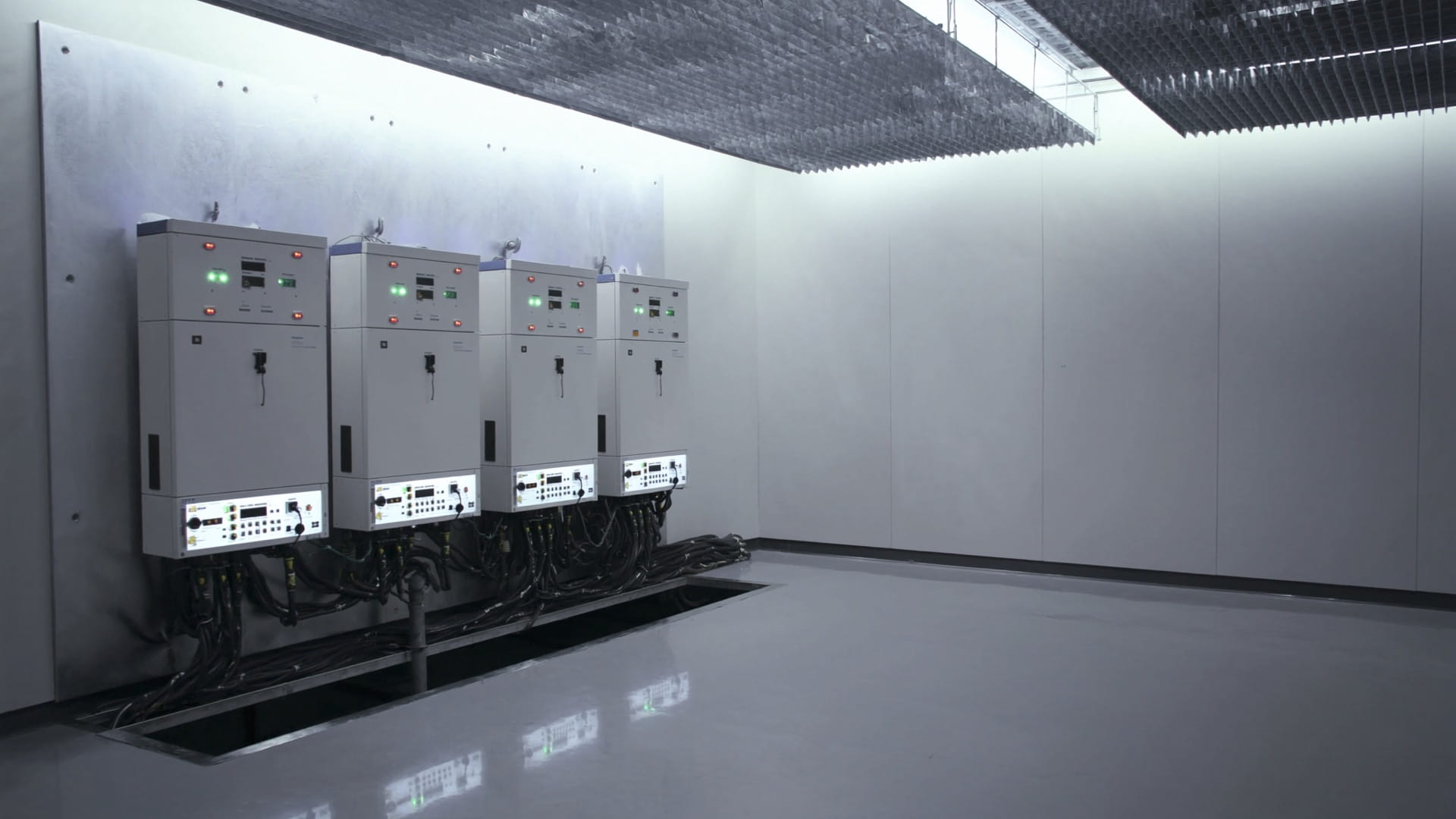

That is exactly the role an Uninterruptible Power Supply (UPS) plays in your facility's electrical infrastructure. It is the instantaneous protection that bridges the gap between "normal" and "disaster," keeping your critical operations running while backup systems engage or power returns.
Yet despite being mission-critical for data centers, hospitals, manufacturing, and countless other applications, UPS systems are often specified as an afterthought, leading to inadequate capacity, poor reliability, and costly failures. Let's fix that.
What Is a UPS and How Does It Work?
An Uninterruptible Power Supply is an electrical device that provides emergency power and power conditioning when the main utility supply fails or degrades. Unlike generators (which take 10-30 seconds to start) or battery energy storage systems (which may take 100 or more milliseconds to transfer), a UPS provides an instantaneous, seamless transition. Your loads literally never know the power failed.
The Three Main UPS Topologies
There are three core UPS topologies, each trading cost against protection. The table below summarizes how they compare, using draft specifications.
| Topology | How it works | Transfer time | Cost / protection | Best for |
|---|---|---|---|---|
| Standby (Offline) | Normally passes utility power through; switches to battery on failure | 4-10 ms | Lowest cost, least protection | Desktop computers, small office equipment |
| Line-Interactive | Adds voltage regulation via a buck/boost transformer | 2-4 ms during outage | Moderate cost and protection | Small servers, networking equipment, point-of-sale systems |
| Double-Conversion (Online) | Continuously converts AC to DC to AC; load always powered from inverter | Zero (load always on inverter) | Highest protection and power quality | Data centers, hospitals, critical manufacturing, telecommunications |
For truly critical applications, where even a half-cycle interruption causes problems, only double-conversion topology provides adequate protection.
Beyond Backup: The Power Quality Benefits
Most people think of UPS systems solely as backup power devices. But for critical electronic loads, the power conditioning they provide may be even more valuable.
Voltage Regulation
Utility voltage can vary by 10 percent or more. Sensitive IT equipment, medical devices, and process controllers need stable voltage, typically within 3 percent. A UPS provides this regulation continuously.
Frequency Stability
While rare in grid-connected systems, frequency excursions can damage motor drives and cause timing issues in synchronous equipment. UPS systems provide rock-solid 60.00 Hz output.
Harmonic Filtering
Utility power can contain harmonics from other facilities. Double-conversion UPS systems provide clean sine wave output regardless of input distortion.
Transient Suppression
Lightning strikes, switching operations, and nearby load changes create voltage spikes and sags. UPS systems absorb these transients, protecting downstream equipment.
Zero Transfer Time
Even a 4-millisecond transfer time (one-quarter cycle at 60 Hz) can cause servers to reboot, PLCs to fault, or medical equipment to alarm. Double-conversion UPS eliminates transfer time entirely.
Sizing: Where Most Projects Go Wrong
UPS sizing is not just about adding up the nameplate ratings of connected equipment. Common mistakes include the following.
1. Undersizing for inrush current. Motors, transformers, and power supplies can draw 5-10 times their running current for milliseconds during startup. A properly sized UPS must handle this inrush without tripping or transferring to bypass.
2. Ignoring future growth. Installing a UPS at 90 percent capacity saves money today but forces a costly replacement in two years when you add equipment.
3. Overlooking power factor. An IT rack drawing 10 kW might only have a 0.95 power factor, requiring 10.5 kVA from the UPS. Sizing in kW without accounting for reactive power is a recipe for overload.
4. Neglecting runtime requirements. Your critical load might only draw 100 kW, but do you need 5 minutes of runtime (to bridge typical utility disturbances), 15 minutes (to allow orderly shutdown), or 30 or more minutes (to wait for generators to start and stabilize)?
5. Single-string versus redundant architectures. A single 200 kVA UPS provides zero redundancy. If it fails, trips, or requires maintenance, you are on utility power or down entirely. Redundant architectures cost more but provide N+1 or 2N availability.
UPS Architectures for Mission-Critical Reliability
The UPS capacity you need is only half the equation. How you configure it determines your actual reliability. The table below compares the four common redundancy architectures and their typical availability.
| Architecture | Configuration | Survives | Typical availability | Best for |
|---|---|---|---|---|
| N (Single UPS) | One UPS sized for total load | Nothing (zero redundancy) | 99.7% (26 hours downtime/year) | Non-critical loads, good utility reliability |
| N+1 (Redundant Parallel) | N modules for load plus 1 spare, with automatic load sharing | Single UPS failure | 99.99% (52 minutes downtime/year) | Most critical applications balancing cost and reliability |
| 2N (Dual-Path) | Two independent systems, each carrying full load, dual-path distribution | Any single component failure | 99.995% (5 minutes downtime/year) | Tier IV data centers, critical healthcare, financial trading |
| 2N+1 (Dual-Path Redundant) | Two independent N+1 systems | UPS failure plus complete path failure | 99.999% (30 seconds downtime/year) | Downtime cost exceeding 100,000 dollars/hour |
Dual-path architectures (2N and 2N+1) require dual-corded equipment so each load can be fed from either independent path.
Battery Technology: Beyond Lead-Acid
For decades, valve-regulated lead-acid (VRLA) batteries were the only option for UPS systems. Not anymore. The table below compares the three main technologies.
| Technology | Initial cost | Lifespan | Footprint / weight | Notes | Best for |
|---|---|---|---|---|---|
| VRLA (Lead-Acid) | Lowest | 3-5 years | Large and heavy | Temperature sensitive: every 10°C above 25°C halves life | Budget-constrained projects, cool environments |
| Lithium-Ion | 2-3x higher | 10-15 years (often matches UPS life) | 60-80% smaller, 60-70% lighter | Better temperature tolerance; lifecycle cost often lower despite higher upfront cost | Space-constrained or high-temperature facilities, 10+ year horizons |
| Flywheel | High | Essentially unlimited cycle life | Very small | Very low maintenance; only 10-20 seconds runtime | Reliable-generator sites, high cycling frequency |
Maintenance: The Hidden Reliability Factor
A properly maintained UPS can run 15-20 years. A neglected UPS might fail in 5. Critical maintenance includes the following.
Battery Testing (Quarterly)
Measure voltage, impedance, and temperature to identify weak cells before they fail. Perform discharge testing annually to verify runtime.
Inverter Maintenance (Annually)
Inspect capacitors and perform ESR testing, clean and test the cooling system, and verify connection torque.
Load Bank Testing (Annually)
Run a full-load discharge test to verify capacity and runtime, confirm the transfer to battery is seamless, and validate generator coordination if applicable.
Thermal Imaging (Annually)
Identify hot connections before they fail. This is non-invasive and performed on energized equipment.
Case Study: Data Center UPS Design
A financial services firm building a 5 MW data center needed five-nines availability (99.999%) due to the high cost of trading platform downtime.
Our design:
- 2N+1 architecture with dual electrical distribution paths
- Six 1 MW UPS modules (three per path), providing N+1 redundancy per path
- Lithium-ion batteries for 15-minute runtime to generators
- Total installed capacity of 6 MW (5 MW load plus 20 percent growth allowance)
- Maintenance bypass per UPS for zero-downtime servicing
Integration:
- Automatic generator testing under load every month
- Building Management System (BMS) integration for remote monitoring
- Predictive analytics monitoring battery state of health
- Dual utility feeds from separate substations
Results:
- Zero unplanned downtime in the first three years of operation
- Successfully survived 17 utility interruptions (the longest 2.3 hours)
- One UPS module failure at 18 months, with the load automatically transferred and zero impact
- Return on investment justified by avoided downtime cost after just 14 months
The Bottom Line: Don't Compromise on Critical Power
A UPS system is not the place to cut corners. The cost difference between adequate and excellent UPS design is typically 1-2 percent of overall facility cost. The cost of inadequate UPS protection, in downtime, data loss, damaged equipment, and liability, can be catastrophic.
When specifying a UPS system, insist on:
- Topology matched to criticality (double-conversion for truly critical loads)
- Capacity with adequate margin for inrush, power factor, and growth
- Architecture providing redundancy appropriate to downtime cost
- Battery technology optimized for your runtime, space, and lifecycle cost requirements
- Maintenance program ensuring reliability over the system's life
Your seatbelt isn't optional, and neither is proper UPS protection for critical operations.
Need to specify, upgrade, or troubleshoot a UPS system? Our team provides comprehensive power protection engineering from load assessment through commissioning. Contact us to discuss your critical power requirements.
Frequently asked questions
What UPS topology do I need?
Match the topology to how critical your load is. Standby (offline) UPS, with a 4-10 millisecond transfer time, is the lowest cost and best for desktop computers and small office equipment. Line-interactive UPS adds voltage regulation and transfers in 2-4 milliseconds, making it a good fit for small servers, networking equipment, and point-of-sale systems. Double-conversion (online) UPS continuously powers the load from its inverter with zero transfer time and is the only adequate choice for data centers, hospitals, critical manufacturing, and telecommunications where even a half-cycle interruption causes problems.
How is a UPS different from a generator?
Speed of response is the key difference. A generator takes 10-30 seconds to start, and a battery energy storage system may take 100 or more milliseconds to transfer, but a UPS provides an instantaneous, seamless transition so your loads literally never know the power failed. In practice they work together: the UPS bridges the gap instantly while a generator starts and stabilizes to carry the load for longer outages.
How do I correctly size a UPS?
Sizing is more than adding up nameplate ratings. Account for inrush current, since motors, transformers, and power supplies can draw 5-10 times their running current for milliseconds at startup. Plan for future growth instead of installing at 90 percent capacity. Size in kVA, not just kW, because power factor matters: a 10 kW rack at 0.95 power factor needs 10.5 kVA. Finally, define your runtime requirement, whether that is 5 minutes to bridge typical disturbances, 15 minutes for orderly shutdown, or 30 or more minutes to wait for generators.
What UPS redundancy architecture should I choose?
Choose redundancy based on the cost of downtime. An N (single UPS) configuration has zero redundancy and roughly 99.7 percent availability, suited to non-critical loads. N+1 adds a spare parallel module, survives a single UPS failure, and reaches about 99.99 percent. 2N uses two independent full-capacity systems with dual-path distribution for about 99.995 percent, fitting Tier IV data centers and critical healthcare. 2N+1 combines two N+1 systems for the ultimate redundancy at about 99.999 percent, justified when downtime cost exceeds 100,000 dollars per hour.
Which UPS battery technology is best?
It depends on your runtime, space, and lifecycle priorities. VRLA (lead-acid) has the lowest initial cost but a 3-5 year lifespan, a large footprint, and high temperature sensitivity. Lithium-ion costs 2-3 times more upfront but lasts 10-15 years, is 60-80 percent smaller and 60-70 percent lighter, and often has a lower lifecycle cost. Flywheel energy storage offers very low maintenance and essentially unlimited cycle life but provides only 10-20 seconds of runtime, enough to bridge to generators.
